Shenzhen Ameison Communication Equipment Co.,Ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | AMEISON |
| Model Number : | AMXW-2400-18 |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

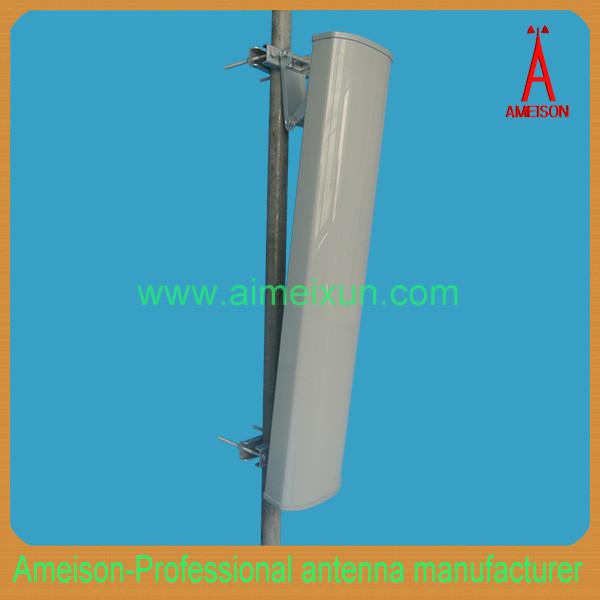

Ameison 2.4 GHz Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome
2400-2483MHz Directional Panel Antenna
AMXW-2400-18
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
WLAN system
2.4GMHZ ISM frequency
AMXW-2400-18 Electrical Specifications | |
Frequency range(MHz) | 2400-2483 |
Bandwidth(MHz) | 83 |
Gain(dBi) | 18 |
Half-power beam width(°) | H:23 V:23 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 305*305*20 |
Antenna weight(kg) | 1.1 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Mounting hardware(mm) | ￠35～￠50 |
|
|
