Shenzhen Ameison Communication Equipment Co.,Ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | AMEISON |
| Model Number : | AMXW-2400-14C |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

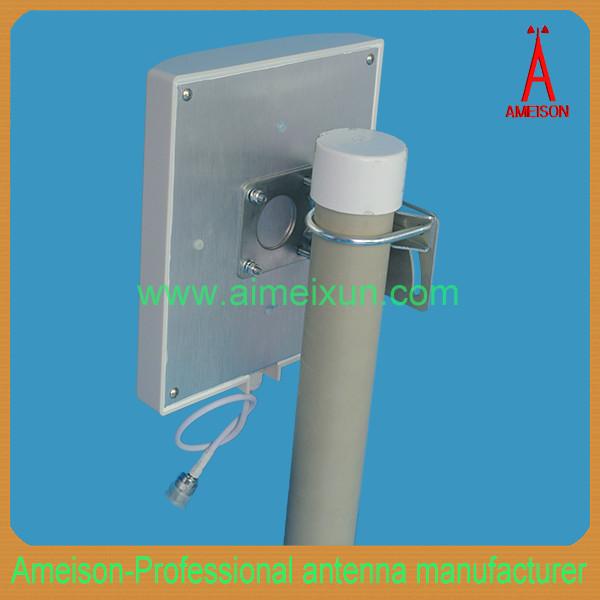

Ameison 2.4 GHz Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome
2400-2483MHz Directional Wall Mount Antenna
AMXW-2400-14C
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4GHZ WLAN system
Point-to-point system,wireless bridging
WIFI system
AMXW-2400-14C Electrical Specifications | |
Frequency range(MHz) | 2400-2483 |
Bandwidth(MHz) | 83 |
Gain(dBi) | 14 |
Half-power beam width(°) | H:30 V:30 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 235*195*35 |
Antenna weight(kg) | 0.58 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Mounting way | pole-holding |
Mounting hardware(mm) | ￠35-￠50 |
|
|
