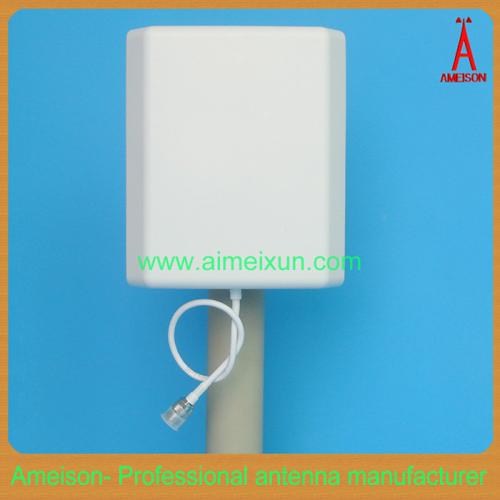

Ameison 2.4GHz Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome
2400-2483MHz Directional Wall Mount Antenna
AMXW-2400-10A
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4GHZ WLAN system
2.4GHZ ISM frequency band
WIFI system
AMXW-2400-10A Electrical Specifications | |
Frequency range(MHz) | 2400-2483 |
Bandwidth(MHz) | 83 |
Gain(dBi) | 10 |
Half-power beam width(°) | H:50 V:50 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | RP-SMA Male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 140*120*25 |
Antenna weight(kg) | 0.3 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Mounting way | wall-hanging or pole-holding |
Mounting hardware(mm) | ￠35～￠50 |
|
|
