| Brand Name : | AMEISON |
| Model Number : | AMXP-8090V-D15L65 |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

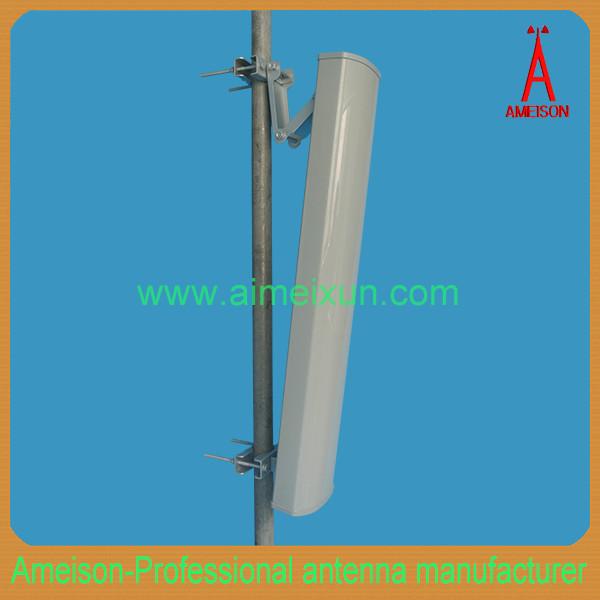

800/900 MHz GSM Panel Antenna
Factory price
All weather operation
Included Up/Down tilt mounting bracket
806-960MHz Directional Panel Antenna
AMXP-8090V-D15L65
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
CDMA,GSM system
Wireless communication and data transmission system
AMXP-8090V-D15L65 Electrical Specifications | |
Frequency range(MHz) | 806～960 |
Polarization | Vertical |
Gain(dBi) | 15 |
Half-power beam width(°) | H:65 V:14 |
Front-to-back ratio(dB) | ≥25 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 400 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N Female |
Dimensions-mm (Height/Width/Depth) | 1300*280*80 |
Packing size(mm) | 1350*320*160 |
Antenna weight (kg) | 8.3 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0～10 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Mounting hardware(mm) | ￠35～￠90 |
|
|
