Shenzhen Ameison Communication Equipment Co.,Ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | AMEISON |
| Model Number : | AMXP-7090S-D11L90 |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

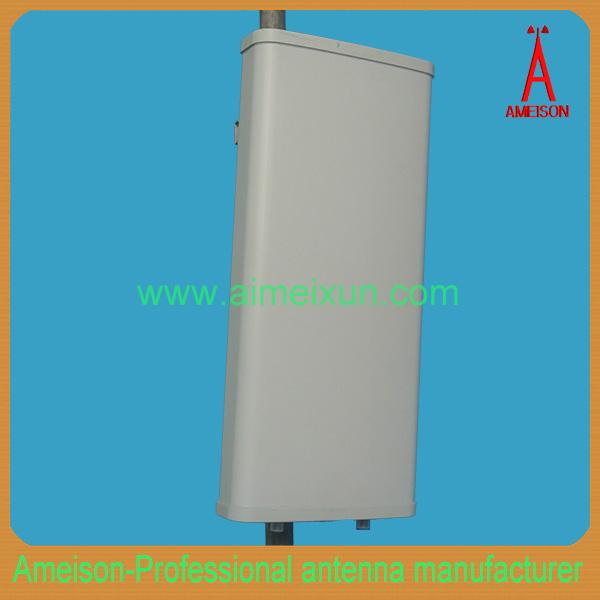

698-960 MHz Sectorial Panel Antenna
Factory price
All weather operation
Included Up/Down tilt mounting bracket
698-960MHz Directional Panel Antenna
AMXP-7090S-D11L90
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
LTE,CDMA,GSM system
Wireless communication and data transmission system
AMXP-7090S-D11L90 Electrical Specifications | |
Frequency range(MHz) | 698～960 |
Polarization | ±45º |
Gain(dBi) | 2×11 |
Half-power beam width(°) | H:90 V:30 |
Front-to-back ratio(dB) | ≥23 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 400 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-N Female |
Dimensions-mm (Height/Width/Depth) | 720*280*125 |
Packing size(mm) | 770*320*210 |
Antenna weight (kg) | 6.2 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0～10 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Mounting hardware(mm) | ￠35～￠90 |
|
|
