Shenzhen Ameison Communication Equipment Co.,Ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | AMEISON |
| Model Number : | AMXP-900-18 |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

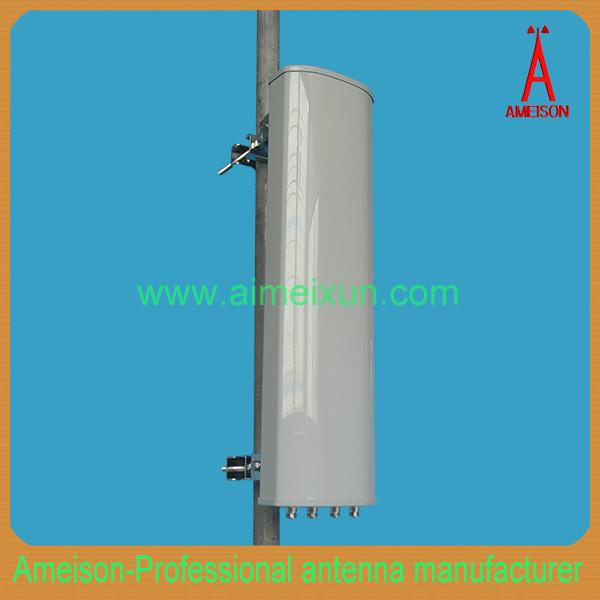

Panel antenna 900MHz 18dBi:
806~960MHz
18dBi
Manufacturer produce
800-900MHZ Mobile System
Panel antenna 900MHz 18dBi:
Feature :
High Gain
H or V Polarization
Full day for working
Durable, corrosion resistance
Optimized dimension
Application :
GSM/CDMA/PCS/3G/WLAN System
Sector signal coverage
Base station &Repeater station system
Wireless telecommunication & Data transmission system
AMXP-900-18 Electric Specifications | |
Frequency rang | 806-960 |
Polarization | Vertical |
Gain(DBi) | 18 |
Beamwidth(0°) | H:65 V:60 |
F/B ratio(DB) | ≥25 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Max power(W) | 400 |
Mechanical Specifications | |
Connector model | N Female |
antenna size (mm) | 1300*280*80 |
Packing size(mm) | |
Antenna weight (kg) | 8.3 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Working Temperatu(°c) | -40~60 |
Rated Wind Velocit(m/s) | 60 |
Pole diamete(mm) | 50~75 |
|
|
