Ameison Flat Patch Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome

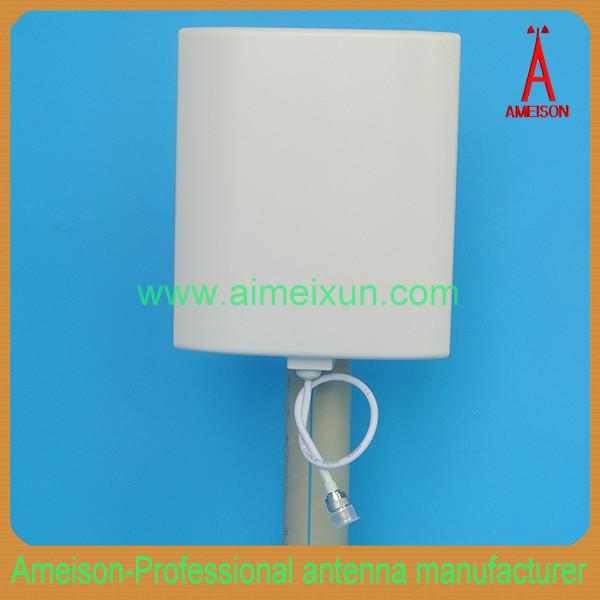

806-2500MHz Directional Wall Mount Antenna
AMXW-8025-10
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
Indoor coveragesystem
CDMA800/GSM900/3G/WLAN system
AMXW-8025-10 Electrical Specifications | |
Frequency range(MHz) | 806～960/1710～2500 |
Bandwidth(MHz) | 154/790 |
Gain(dBi) | 7/10 |
Half-power beam width(°) | H:70/60 V:55/45 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 210*180*45 |
Antenna weight(kg) | 0.57 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Mounting hardware(mm) | ￠35-￠50 |
|
|
