| Brand Name : | AMEISON |
| Model Number : | AMXF-9092-10 |
| Certification : | RoHS and REACH Compliant by Exemption |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

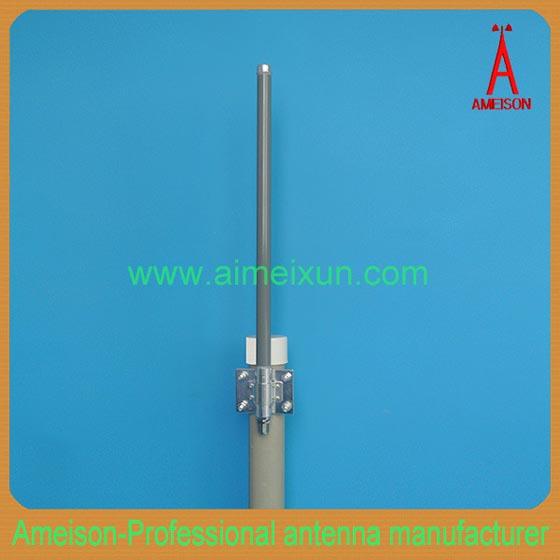

900MHz Omni Fiberglass Antenna
Factory price
Lightweight fiberglass radome
Provided wifh dual u-bolt mast mounting kit
902-928MHz Omnidirectional Fiberglass Antenna
AMXF-9092-10
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain
Low VSWR
Strong anti-interference ability
Application:
902-928MHz frequency band
Radio Frequency Identification system
Point-to-multipoint system
AMXF-9092-10 Electrical Specifications | |
Frequency range(MHz) | 902-928 |
Bandwidth(MHz) | 26 |
Gain(dBi) | 10 |
Half-power beam width(°) | H:360 V:9 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 100 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions (mm) | Φ20*1570 |
Antenna weight(kg) | 0.65 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome color | Gray |
Mounting way | Pole-holding |
Mounting hardware(mm) | ￠35-￠50 |
|
|
