Shenzhen Ameison Communication Equipment Co.,Ltd.
9 Years
| Ask Lasest Price | |
| Brand Name : | AMEISON |
| Certification : | RoHS and REACH Compliant by Exemption |
| Model Number : | AMXP-9020V-D1215L65 |
| Price : | FOB SHENZHEN |
| Delivery Time : | 10 days |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability : | 80,000 Pieces per Month |

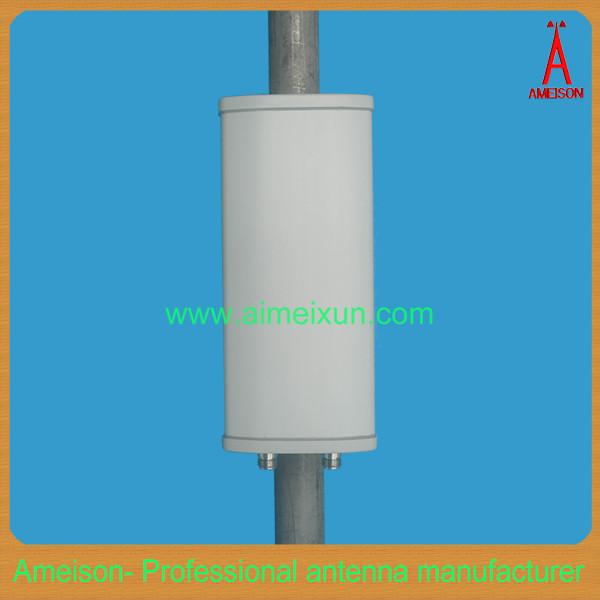

900-2050MHz Directional Panel Antenna
AMXP-9020V-D1215L65
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
GSM/PCS/3G system
Wireless communication and data transmission system
AMXP-9020V-D1215L65 Electrical Specifications | ||
Frequency range | 900～960 | 1850～2050 |
Polarization | Vertical | |
Gain(dBi) | 12 | 15 |
Half-power beam width(°) | H:65 V:28 | H:65 V:15 |
Front-to-back ratio(dB) | ≥25 | ≥25 |
Input Impedance(Ω) | 50 | |
VSWR | ≤1.5 | ≤1.5 |
Maximum input power(W) | 400 | 200 |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Input connector type | 2-N Female | |
Dimensions-mm (Height/Width/Depth) | 1200*280*80 | |
Packing size(mm) | 1250*330*170 | |
Antenna weight (kg) | 8 | |
Radome material | UPVC | |
Radome color | Gray | |
Mechanical tilt(°) | 0～10 | |
Operating temperature(°c) | -40～60 | |
Rated Wind Velocity(m/s) | 60 | |
Mounting hardware(mm) | ￠35～￠90 | |
|
|
